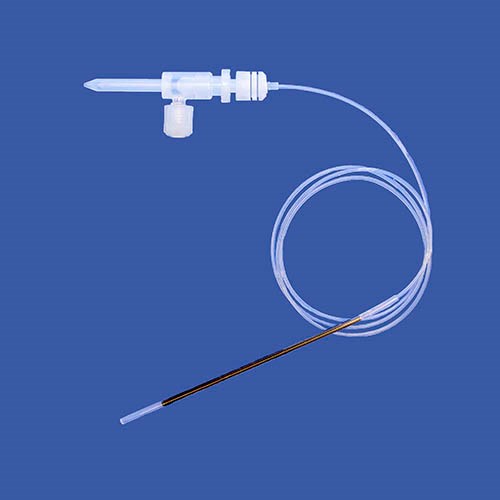

C100s Nebulizer with Carbon Probe (100 cm)

800-4-010-04-00

$1,746.35

Part Weight (lbs):

0.104

Microconcentric PFA s-type nebulizer: ultra-high sensitivity in normal and cool plasma modes for semiconductor applications
Demountable PFA uptake line with unique zero dead volume connection - same washout performance as an integrated uptake line
Robust - can be backflushed; no cleaning tools needed
100 cm uptake line; comprised of ~85 cm of flexible uptake line and ~15 cm carbon probe
Encapsulated carbon probe is 2.9 mm OD, 14.4 cm long, including encapsulation
Fits ESI SC Micro autosampler and CETAC ASX 110/112 with new style arm (from Feb 2015)
6 mm OD body with 4 mm gas port
Free aspirates at 100 µl/min +/-10 µl/min – or can be pumped
Use with supplied uptake line, or body connects directly to line from ESI FAST systems
Gas line connection kit included. For connection to the PE NexION 2000, order Part #830-052
This nebulizer supersedes Part #800-1-010-04-00
Note: This nebulizer is designed for use only with standard sample introduction systems (ambient temp or chilled spray chamber). Where a desolvator is used, a nebulizer type “Nebulizer for Desolvators” must be selected.
