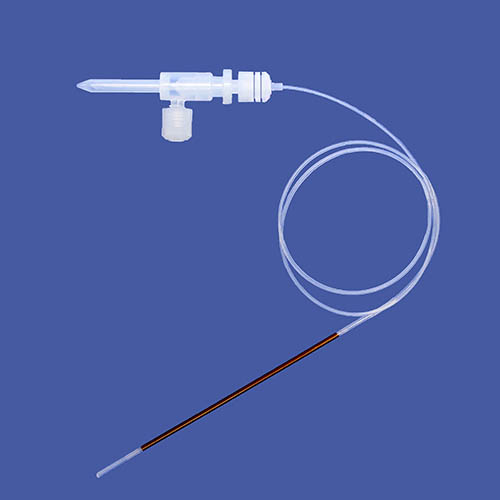

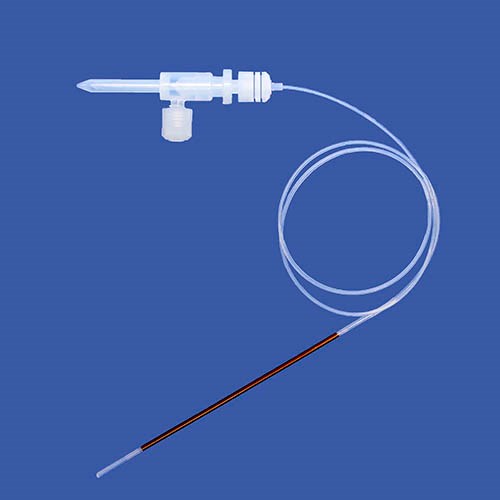

C100s Nebulizer with Autosampler Probe (70 cm)
800-4-010-02-00
$1,521.68
Part Weight (lbs):
0.104
Overview
- Microconcentric PFA s-type nebulizer: ultra-high sensitivity in normal and cool plasma modes for semiconductor applications
- Demountable PFA uptake line with unique zero dead volume connection - same washout performance as an integrated uptake line
- Robust - can be backflushed; no cleaning tools needed
- 70 cm uptake line; comprised of ~60 cm of flexible uptake line and ~10 cm polyamide probe
- Encapsulated polyimide probe 2.8 mm OD, 10.2 cm long - compatible with Agilent I-AS autosampler only
- 6 mm OD body with 4 mm gas port
- Free aspirates at 100 µl/min +/-10 µl/min – or can be pumped
- Use with supplied uptake line, or body connects directly to line from ESI FAST systems
- Gas line connection kit included
- This nebulizer supersedes Part #800-1-010-02-00
-
Note: This nebulizer is designed for use only with standard sample introduction systems (ambient temp or chilled spray chamber). Where a desolvator is used, a nebulizer type “Nebulizer for Desolvators” must be selected.
