Savillex can custom injection mold every commercially available fluoropolymer resin – from PFA, FEP, ETFE and PDVF to ECTFE and PCTFE. Stretch blow molded products can be designed and developed in either PFA, FEP or ETFE. Our fluoropolymers page has a wealth of information on each resin type and its properties, including chemically resistant plastic applications. We can also custom injection mold other polymers including PEI (Ultem) and polypropylene. Every application is different – consult with Savillex to find the exact resin type and grade for your needs.

Design Engineering

We use Solidworks design stations to design parts for manufacturability (molding and secondary operations). We use mold fill simulations to optimize tool design and prevent costly tooling rework

With over 100 years combined experience and knowledge of fluoropolymer materials and deep understanding of material compatibility with fluoropolymers, Savillex provides the design engineering support critical for a successful outcome to a custom services project.

Molding Simulation

Savillex utilizes the most current injection molding simulation tools available.  These tools allow us to accurately optimize design features to prevent costly tooling rework, identify potential processing problems and accurately estimate cycle times.  Eliminating the chance of surface defect formations, short shots, and sink marks are just a few defects that can be prevented during the design phase. The video below illustrates how we use molding simulation software to design the molding tool for highest performance. The colors represent the temperature of the molten fluoropolymer as it fills the tool cavity. In this case the part is one piece of a pair of PFA tongs.

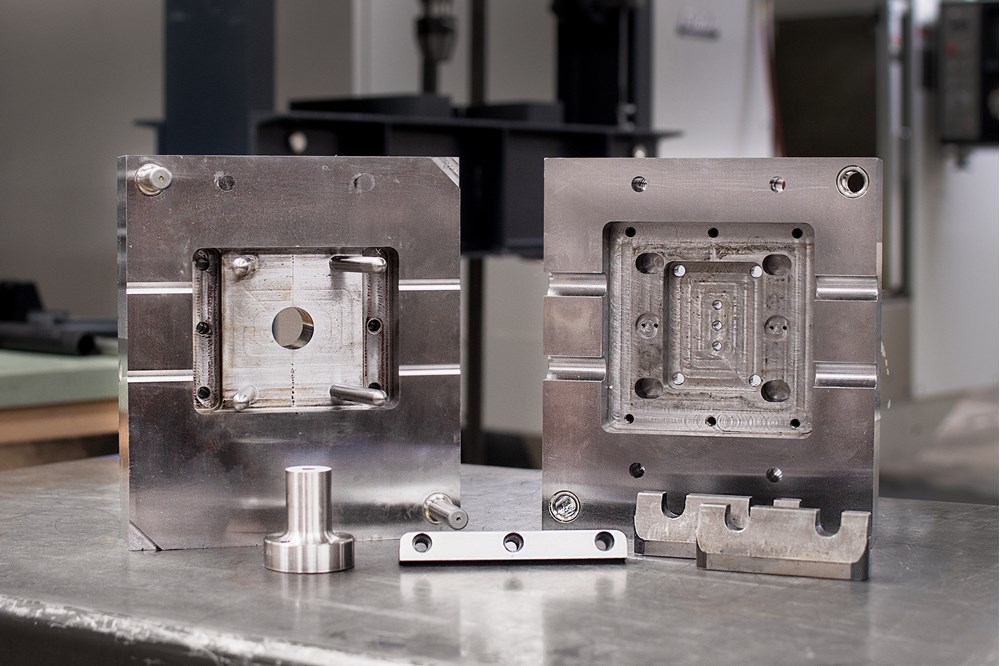

Tool design
We utilize both Solidworks and Mastercam for Solidworks packages in our injection and blow mold tool design. This enables us to quickly build and visualize parts, and then to design the tool around the part.

Designing tools that impart the lowest trace metals contamination
Our semiconductor customers demand parts as free as possible from trace metal contaminants. Over the past 30 years, we have learned how to produce tools that impart the lowest possible metals contamination to the parts we mold.

Fabrication
Tooling is designed and manufactured in house right here at Savillex, giving us speed and flexibility that our customers really appreciate. Our customers speak directly with our engineers and tooling manager, from the design phase right through to the completed part.

Ability to make changes and modifications quickly
Because we manufacture our tooling in house, should any modifications be needed during part qualification, we are able to respond very quickly.

Single cavity, multi cavity and family tools
Our flexibility in tool design and scalability allows our customers to easily expand production capacity as their needs change.

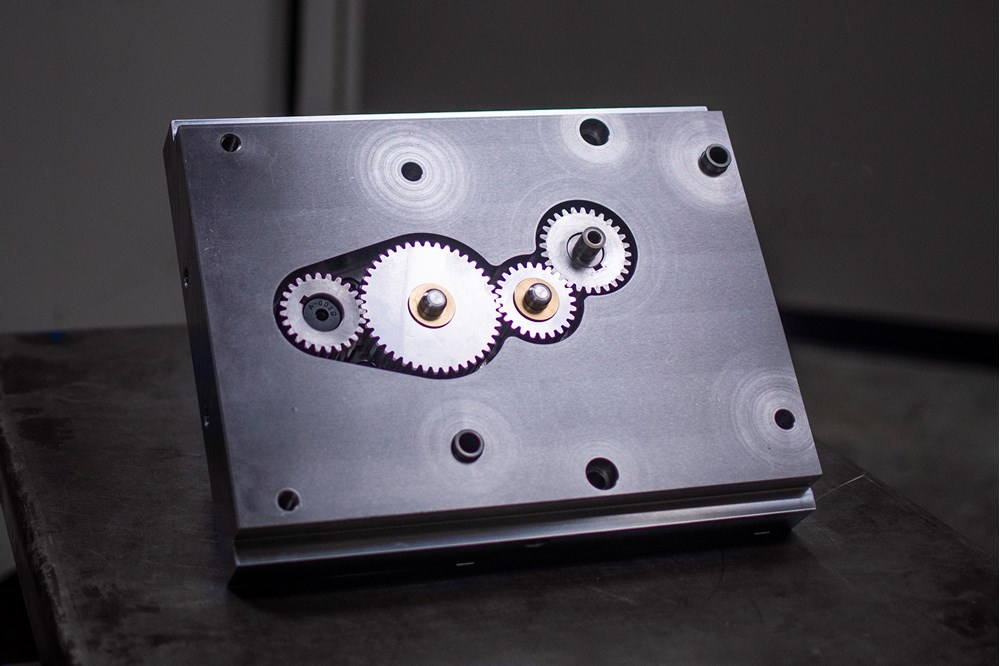

Unscrewing molds, insert molds and overloading capabilities
Our wide array of mold design capabilities allows us to meet our customers’ needs no matter how complex the part.

Tooling maintenance
When a customer contracts with us to build a tool, the tool becomes the property of the customer. Maintenance is carried out by Savillex at no charge for as long as the tool is in our possession.

Tool transfers
We are able to accommodate tool transfers where our customers need to consolidate part manufacture. Send us your existing tool, we will inspect it, quote for any repairs necessary, and maintain it while it is in our possession.

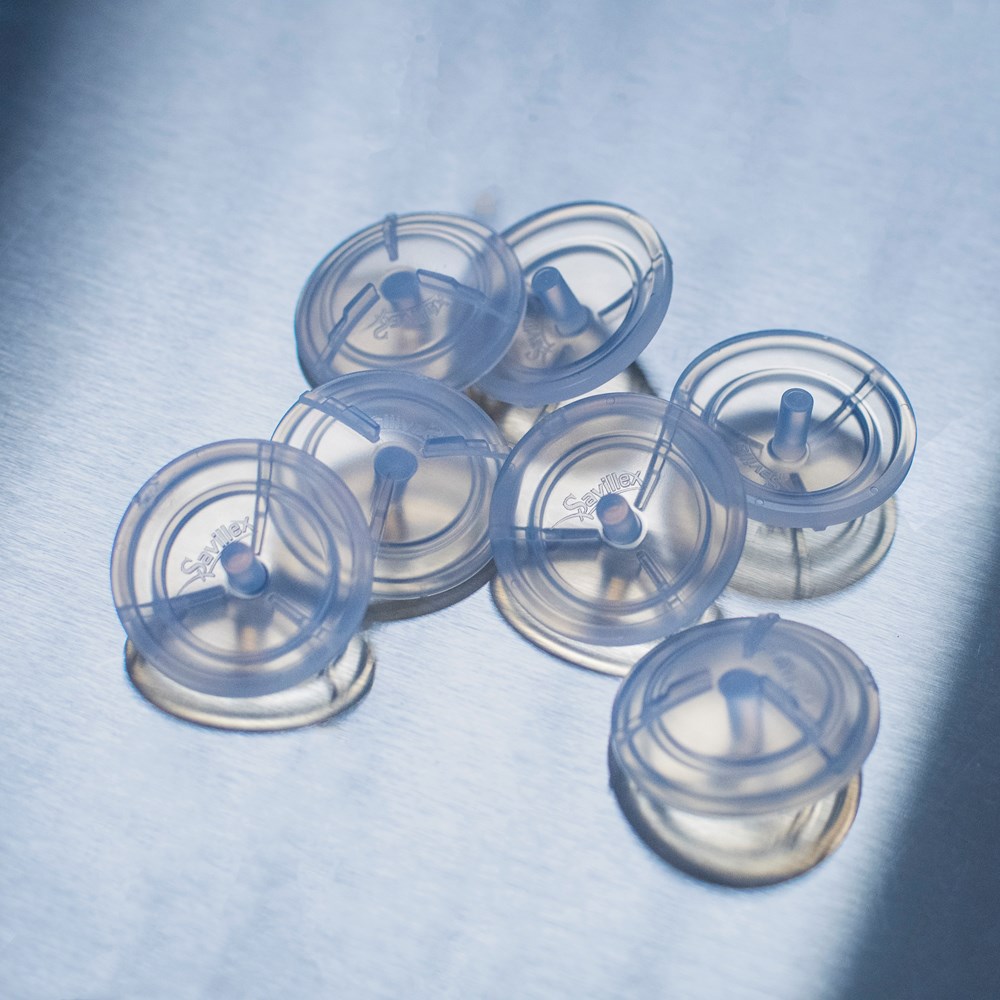

Injection Molding

Injection molding press sizes
Our Injection molding presses range in size from 110 to 380 tons, allowing us to mold from under a gram to over 2kg

Molded parts size

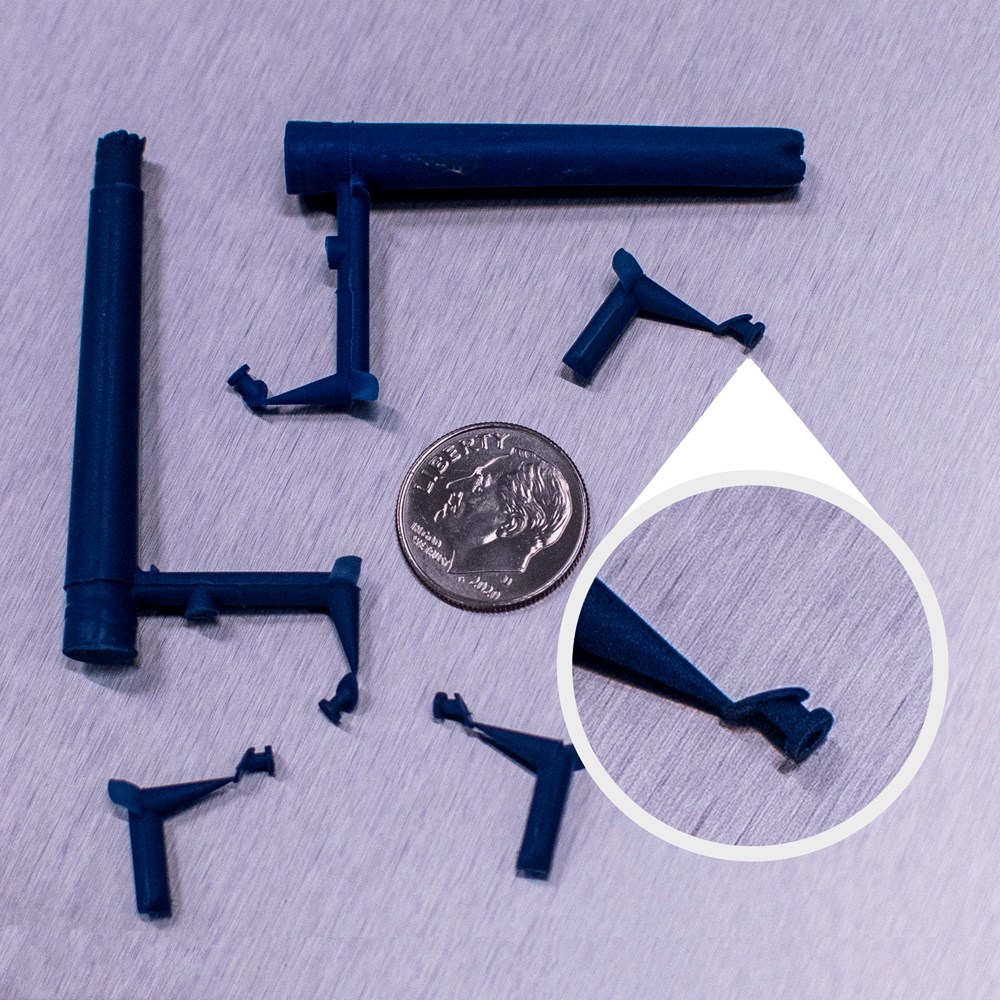

We have the capability to design and mold parts from a few mm up to 30cm long and 50cm in diameter.

Automation

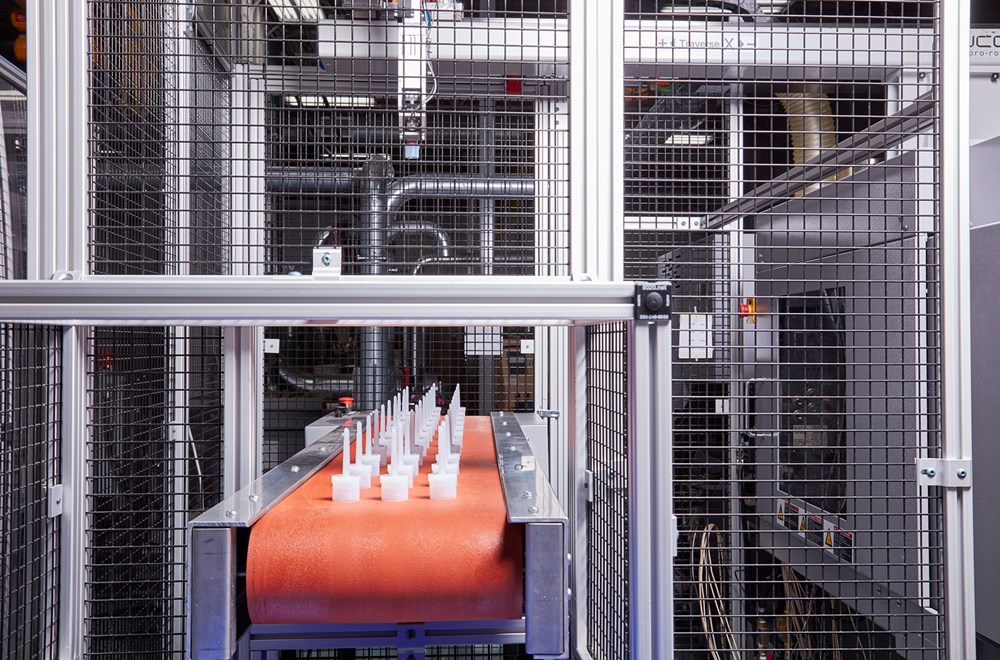

We have installed automated work cells on several of our presses, improving repeatability and increasing throughput capabilities.

Reducing environmental contamination
Contamination control is a priority at Savillex and several of our ultra clean injection molding presses have ISO Class 7 enclosures around the feed hopper and tool area. HEPA enclosures also protect parts from airborne contamination as they exit the work cell.

Stretch Blow Molding

Proprietary technology

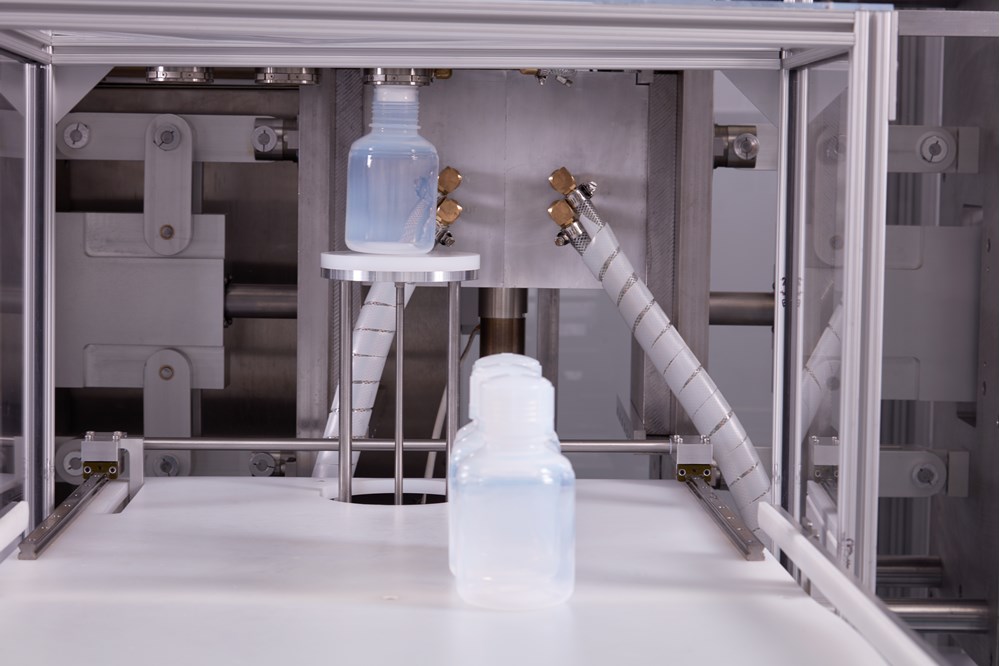

Savillex is the only company in the world that can stretch blow mold fluoropolymers. In order to accomplish this, we had to build our own stretch blow molding equipment, designed specifically to manufacture fluoropolymer chemically resistant plastic bottles.

ISO class 7 cleanroom manufacturing
One benefit of stretch blow molding is the compact size of the molding equipment used. This has enabled us to perform the blow molding process inside an ISO Class 7 cleanroom, protecting parts from airborne contamination.

Bottle size range

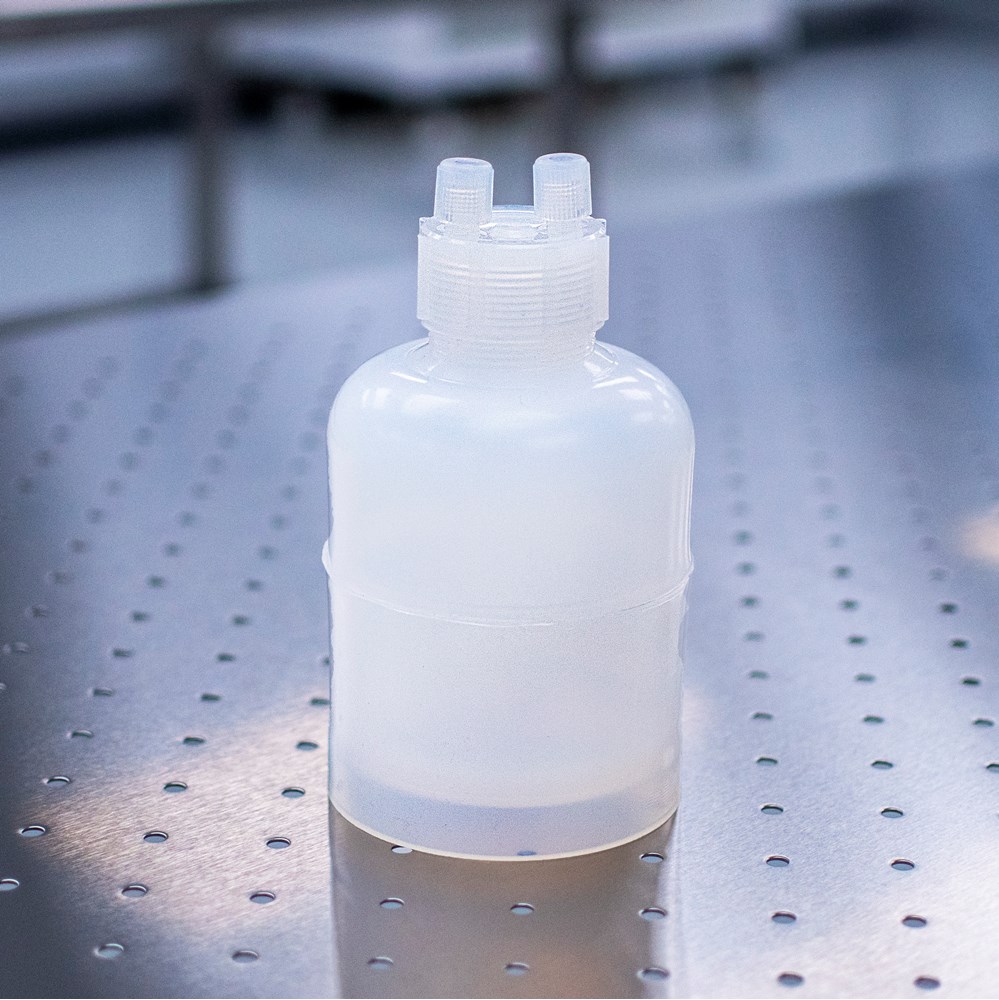

We are able to stretch blow mold bottles from 50 mL to 2 L, in PFA, FEP and ETFE. We can blow mold custom designed bottles and other shapes as required.

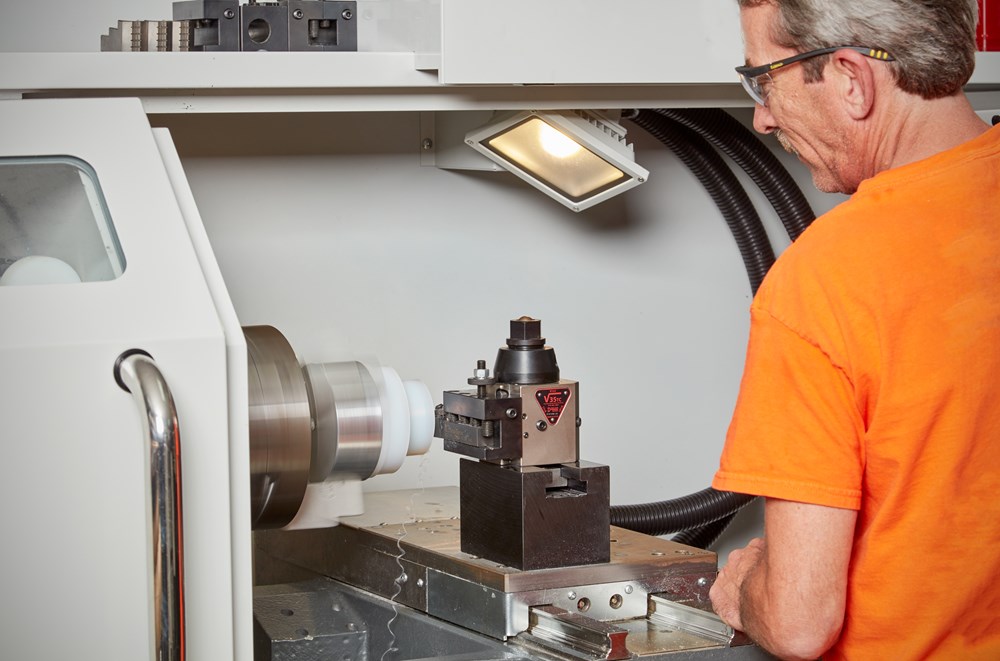

Machining
Not all parts require secondary operations after molding, but we have the capability to perform a wide range of machining operations in our specialized secondary operations machine shop.

Surface Finishing of Fluoropolymer Parts
We have unmatched capabilities in machining fluoropolymers to low RA values and our custom pump housings are used in the most challenging semiconductor pump applications.

Assembly and Post-Cleaning
A wide range of assembly operations, from very simple to very complex, is available. For some semiconductor customer we perform acid cleaning to remove ultratrace contamination through assembly operations.

ISO Class 7 Cleanroom Assembly
In addition to our blow molding cleanroom we have a large ISO Class 7 clean room for assembly and can also offer sterilization of parts to accepted GMP standards.

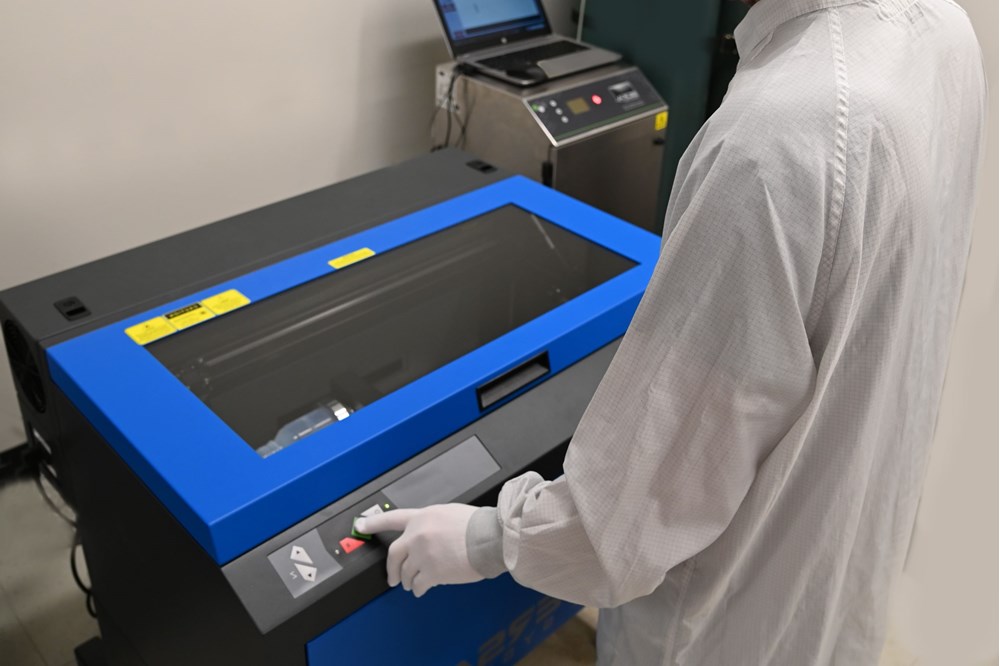

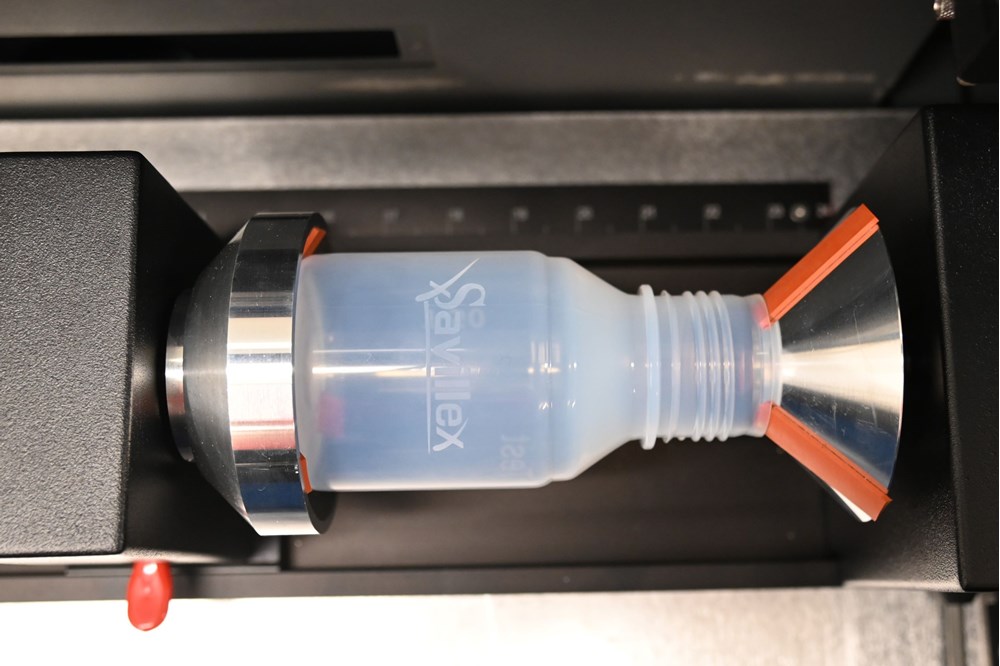

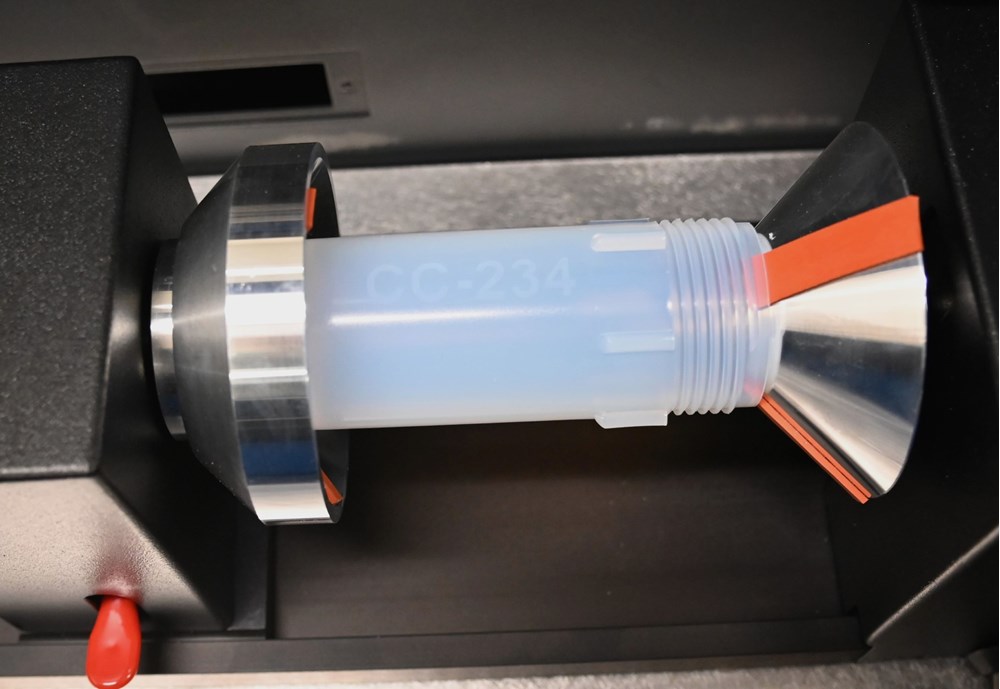

Take the functionality and uniqueness of your custom parts even further with Savillex laser engraving capabilities. Our in-house engraving unit works by delivering high levels of energy to the surface of your product, thus vaporizing the material into fumes to engrave deep, permanent markings. The laser utilizes an air-cooled source, which helps keep the process simple while delivering consistent power for more reliable and accurate results.

Compared to stamping and other laser marking techniques, laser engraving is faster, more durable, and imparts less stress on the part. It also provides advantages specific to fluoropolymers – causing no impact on their chemical and temperature-resistant properties and standing as the only technique that can produce reliable results for ultra-clean resins. This is a significant benefit for those engaged in cryopreservation, acid washing, and similar sensitive use cases.

Savillex laser engraving is a great value-add for a variety of applications in the life sciences, manufacturing, and semiconductor industries, including:

• Logos – Add your branding to any custom part
• Date Codes – Know precisely when your part was manufactured
• Use Matrices – Keep track of number of uses without needing stickers or other markings
• Unique Identifiers – Graduation marks, product names, and much more

Save time and the need for additional vendors with our one-stop laser engraving service. Getting set up and started is simple – just click here to submit your request.

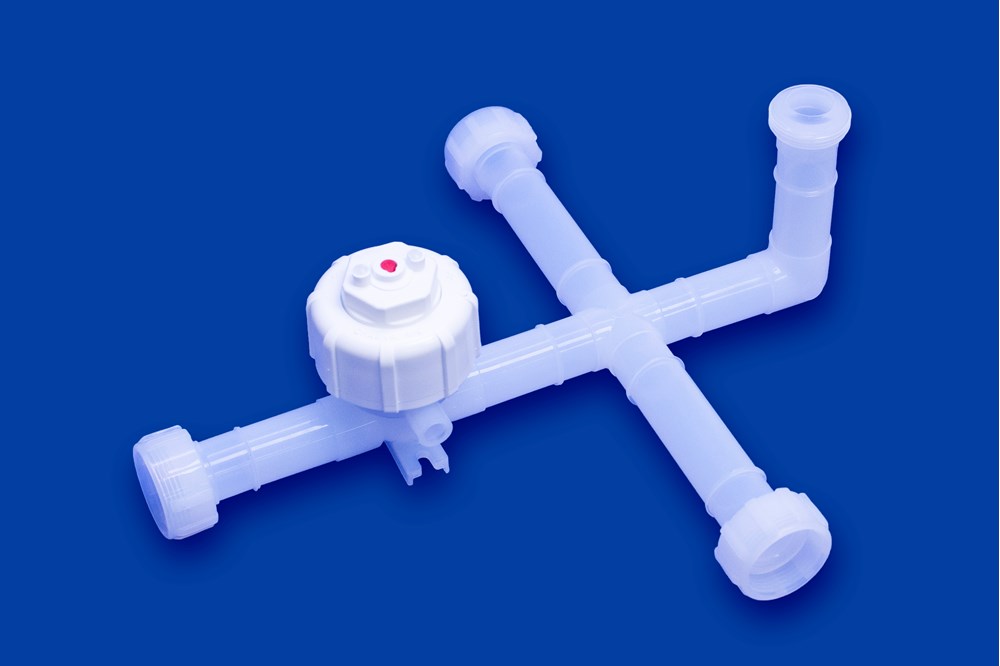

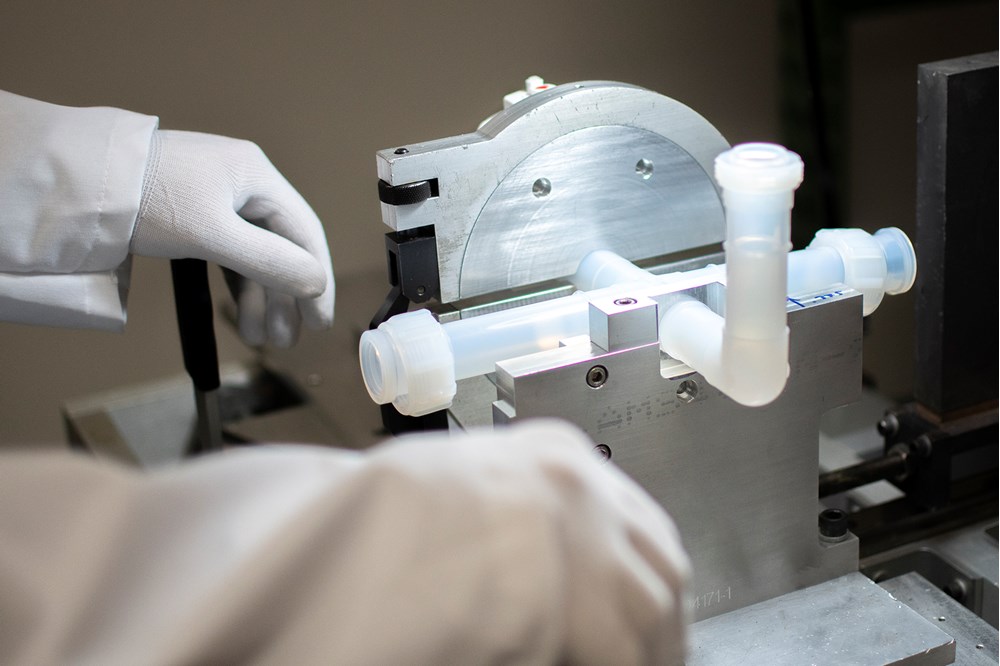

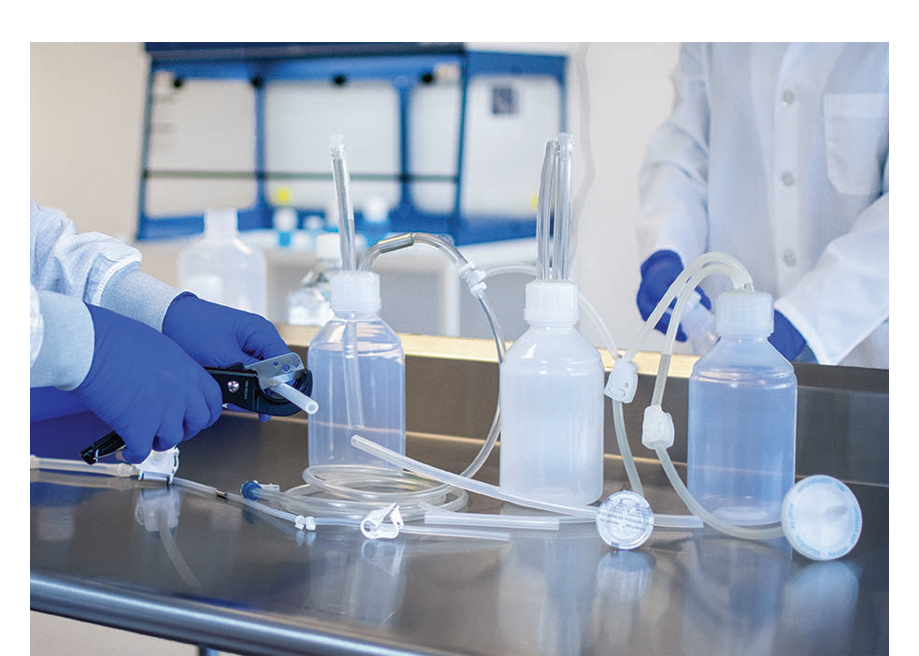

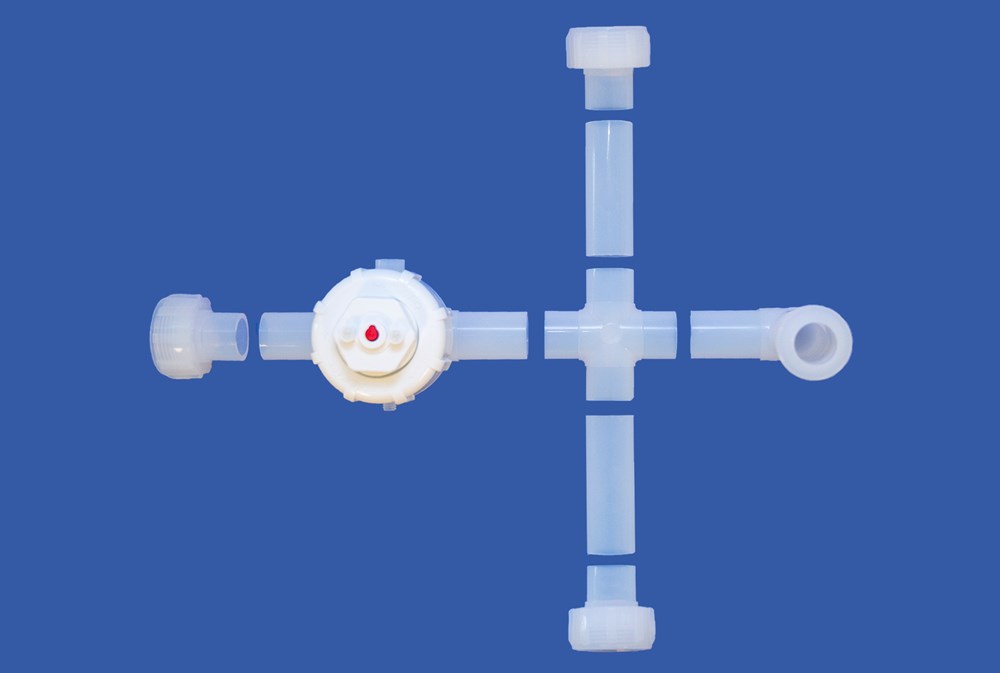

Savillex has developed proprietary, non-contact fusion welding equipment with techniques that give us the capability of fabricating high purity custom fluoropolymer assemblies. Valves, fittings, and pipes are examples of the types of fluoropolymer parts that Savillex fusion welds into assemblies.

As a supplier to semiconductor, pharmaceutical, chemical processing, and medical industries, Savillex has the capability to weld parts as diminutive as Ø .094” and as substantial as Ø 8.0”. And unlike other welding techniques, non-contact welding introduces zero contamination since no welding rod is used. The PFA components are simply fused together. If required, Savillex can supply assemblies that have been autoclave sterilized and packaged in a Class 7 cleanroom.

We make the process easy. We will work with you to gather all the necessary requirements, engineer a design to fit your specific needs and provide you with a quote. Once approved, we move forward quickly to fabricate your assemblies and get them to you.

Contact us today to discuss your project.

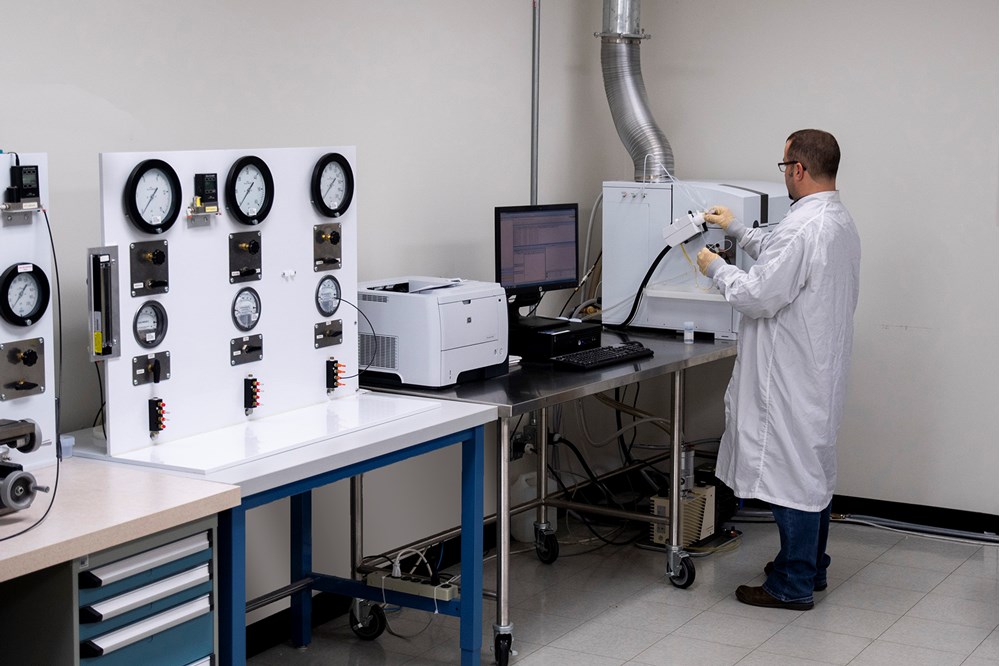

Product testing
Our engineering lab has a wide array of capabilities including leak testing and pressure decay testing, to ensure that all parts we design meet specifications under extreme conditions. Our lab also features an ICP-MS (inductively coupled plasma mass spectrometer) for testing and developing our ICP-MS sample introduction products.

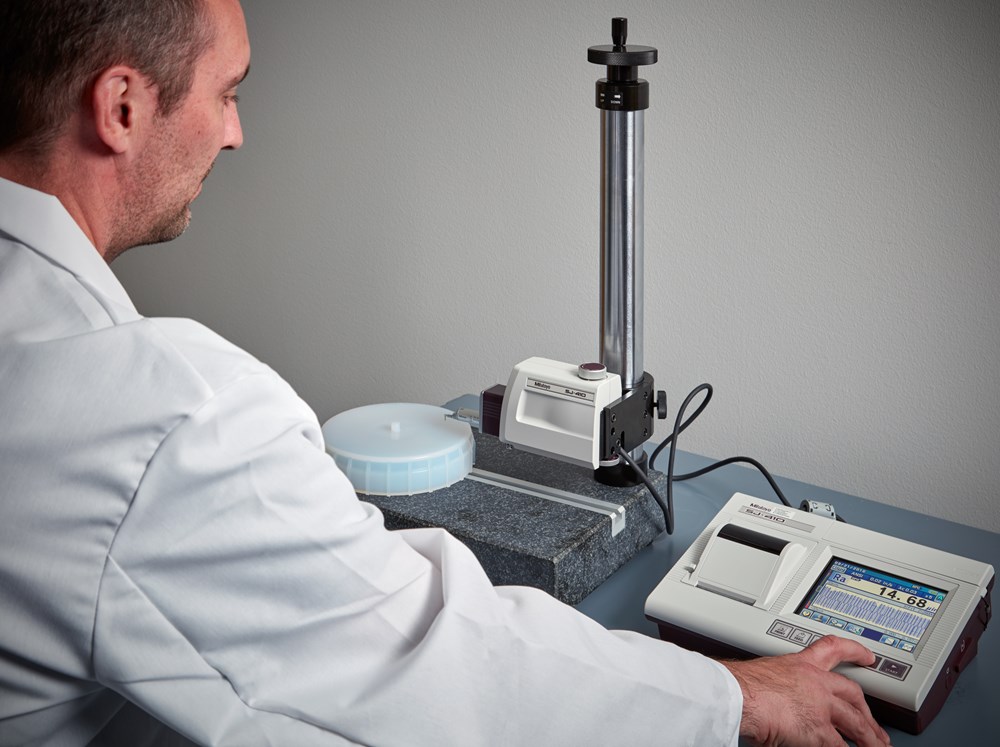

Dimensional Inspection
Our extensive range of metrology equipment allows us to inspect parts for dimensional accuracy, both during part qualification and ongoing quality assurance.

Ultratrace Metals Testing
Our semiconductor customers are the most demanding in the world when it comes to freedom from trace metals contamination in the parts they use. Aside from our tool design knowhow, environmental protection during manufacturing, we also invest heavily in ultratrace metals testing of parts we produce and also of the fluoropolymer resins that we use. No one understands how to produce fluoropolymers as free from metallic contamination as we do.
